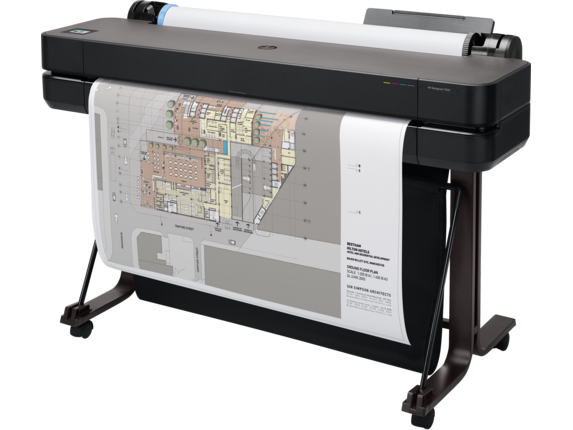

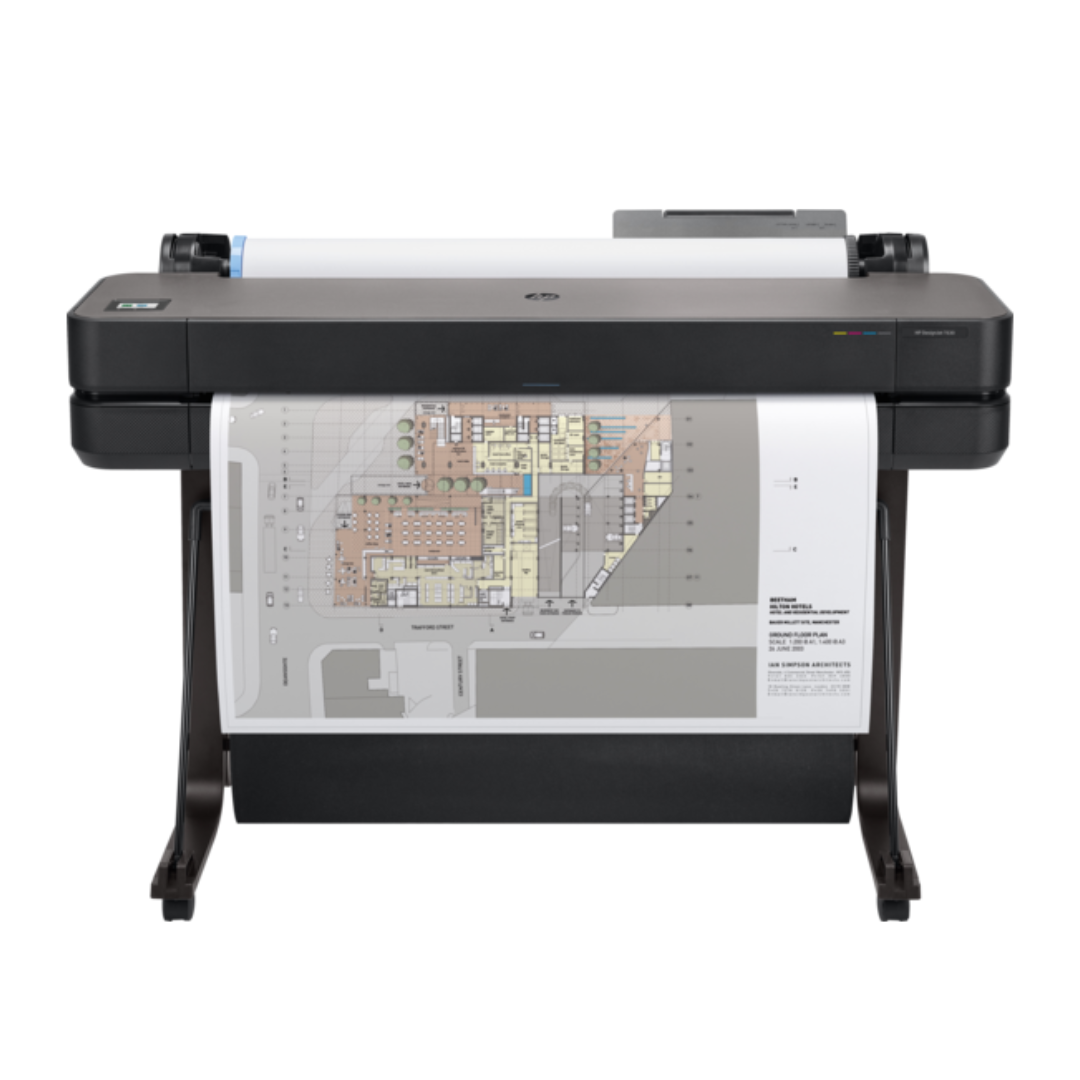

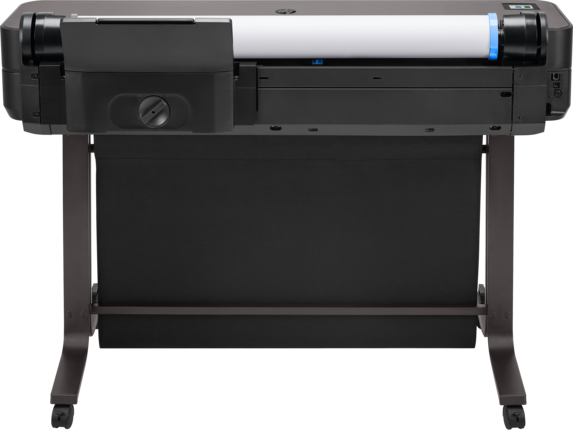

HP DesignJet T630 Printer series


View Descriptions, Specifications and Download the Brochure below.
Not sure which printer suits your application best? Our team have many years of experience supplying printers into all sectors, let us assist you to select the best printer for the job.
Size: A1 (24"/610mm)

Description

Prices include VAT and 1 year Warranty. Installation is excluded. Please contact us for Installation pricing.

Extreme simplicity:

  • Print multi-size A3/B and A1/D or A0/E projects automatically, without manually switching the media source.
  • Save time with the world's easiest job submission —send multiple files in one click with HP Click.
  • Print with confidence you'll get the results you expect with an intuitive driver and true print preview.

Fits your office and budget:

  • Save space with the world's smallest plotters designed to fit your office, including a built-in stand.
  • Use up to 95% less ink for routine maintenance vs competitors and get up to 100 extra A1/D pages per month.
  • More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% recycled plastic.

Fits the way you work:

  • Avoid waiting by the printer with high-speed printing as fast as 30 seconds per A1/D plot.
  • Be more productive—save time from job prep to final print by printing your projects up to 2X faster.
  • Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app.
  • Get high-quality results—HP Bright Office Inks plot up to 31% more line accuracy and up to 65% more gamut.
Technical specifications
Functions

Print

Print speed, maximum

30 sec/page on D, 76 D prints per hour

Resolution (color)

Up to 2400 x 1200 optimized dpi

Print Technology

HP Thermal Inkjet

Number of print cartridges

4 (C, M, Y, K)

Product disclaimer

This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:http://www.hp.com/learn/ds

Compatible ink types

Dye-based (C, M, Y); pigment-based (K)

Print languages

HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Connectivity, standard

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Memory, standard

1 GB

Hard disk

none

Non-printable area (cut-sheet)

0.2 x 0.2 x 0.2 x 0.2 in

Line accuracy

±0.1%

Maximum optical density (black)

8 L* min/2.10 D

Dimensions (W X D X H)

39.9 x 23.8 x 36.7 in

Finished output handling

Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

Media sizes supported

Auto sheet feeder: A, B; manual feed: A, B, C, D, E

Media sizes supported

Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1, A0

Media sizes, custom

Auto sheet feeder: 8.3 x 11 to 13 x 19 in; manual feed: 8.3 x 11 to 36 x 74.7 in

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max. Not dual voltage, power supply varies by part number with # Option code identifier.

Warranty

One-year limited hardware warranty

Weight

76.5 lb

What's in the box

HP DesignJet T630 36-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord



Downloads

To download the latest product brochure, Click Here
