Nix Spectro 2 Spectrophotometer / Densitometer
The ideal tool for measuring paint, print, textured samples, and so much more. For best color results, the 5 mm aperture size is recommended for all samples 16 mm or larger.
• Best for general use in a wide range of industries
• Compatible with our range of adapters (for liquids, powders, and non-uniform surfaces)
• Best for samples 16 mm and larger
A must-have for quality control
Trusted by companies across industries and around the world, add the Nix Spectro 2 to your workflow and effectively analyze color and perform on the spot quality checks during production. The Nix Spectro 2 is compatible with our Nix Print Pro software, free Nix Toolkit app and existing third-party color software to easily integrate into your workflow.
Features

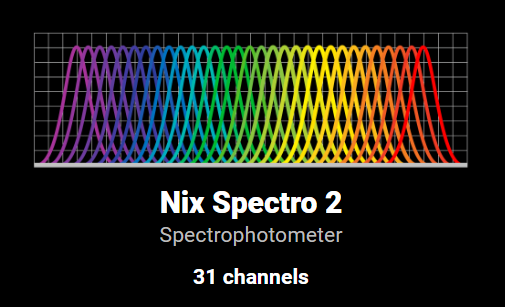

- True 31-channel spectral data across the visible spectrum (400- 700 nm)
- Densitometer, quality control, and library management capabilities
- Match any color with a simple measurement
- Compare two color measurements
- Subscription options in the Nix Toolkit app for Pantone, RAL and NCS
- Industrial-coated, metal enclosure
- Haptic vibration and RGB indication
- M0, M1 & M2 measurement modes for use with optical brighteners
- Compatible with our library of adapters for measuring liquids, powders, soft surfaces, and more
- Recertification available
Product specifications
| Calibration |
Each unit individually factory calibrated
Integrated/automatic temperature compensation
In-field normalization: manual on included external
ceramic reference
|
| Reflectance measurement |
Measurement conditions:
M0 – UV included – ISO 13655:2017
M1 – D50 – ISO 13655:2017
M2 – UV excluded – ISO 13655:2017
Note: Particular reflectance measurement mode
availability may differ based on application used.
|
|
Density data
|
Evaluated according to ISO 5-3:2009
Density status: A, E, I, T
Note: Particular density data availability may differ
based on application used.
|
|
Colorimetry data
|
Evaluated according to ASTM E308-18
CIEXYZ, CIELAB, LCH(ab), RGB, CMYK, and more
Illuminant: A, C, D50, D55, D65, D75, F2, F7, F11
Observer: 2°, 10°
Note: Particular colorimetry data availability may
differ based on application used.
|
|
Battery life + Charing
|
USB-C charging of internal lithium polymer battery
90 day (3 month) standby time per charge (device
advertising on BLE)
1,000+ scans per charge
|
| Software development kit |
Features device connectivity routines, commands to
request measurements, and utilities to perform color
conversions.
For an up-to-date list of features and supported
platforms, visit:
nixsensor.com/nix-software-development-kit/
|
|
Packaging + accessories
|
Impact-resistant, waterproof carrying case, ideally
suited for field operations
USB-C charging cable
Ceramic reference tile
Inspection certificate
Nix lanyard
Microfiber carrying pouch
Microfiber cloth
|
Connectivity
|
Bluetooth Low Energy
Legacy USB CDC Serial
|
Warranty + expected product lifespan
|
12 months from date of sale, warranty for
manufacturer’s defects (does not cover user
damage)
|
