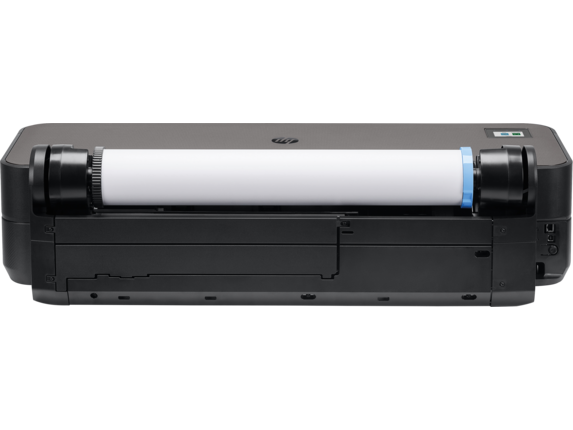

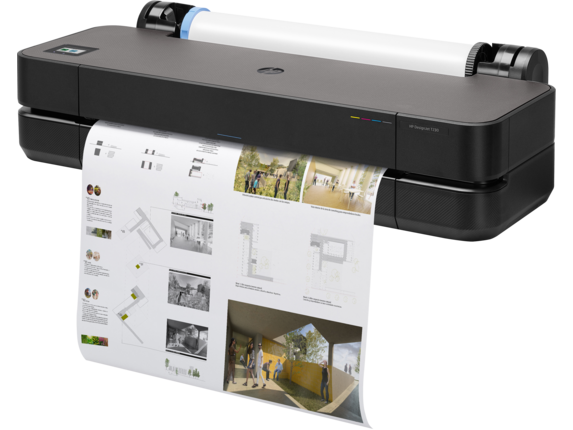

HP DesignJet T230 24-in Printer


View Descriptions, Specifications and Download the Brochure below.
Not sure which printer suits your application best? Our team have many years of experience supplying printers into all sectors, let us assist you to select the best printer for the job.

Description

Extreme simplicity:

  • Save time with the world's easiest job submission —send multiple files in one click with HP Click.
  • Print with confidence you'll get the results you expect with an intuitive driver and true print preview.
  • With an accessory option, print multi-size A3/B and A1/D projects without manually switching the media source.

Fits your office and budget:

  • Save space with the world's smallest plotters designed to fit your office, including a built-in stand.
  • Use up to 95% less ink for routine maintenance vs competitors and get up to 100 extra A1/D pages per month.
  • More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% recycled plastic.

Fits the way you work:

  • Avoid waiting by the printer with high-speed printing as fast as 30 seconds per A1/D plot.
  • Be more productive—save time from job prep to final print by printing your projects up to 2X faster.
  • Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app.
  • Get high-quality results—HP Bright Office Inks plot up to 31% more line accuracy and up to 65% more gamut.
Technical specifications
Functions

Print

Print speed, maximum

35 sec/page on D, 68 D prints per hour

Resolution (color)

Up to 2400 x 1200 optimized dpi

Print Technology

HP Thermal Inkjet

Number of print cartridges

4 (C, M, Y, K)

Product disclaimer

This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:http://www.hp.com/learn/ds

Compatible ink types

Dye-based (C, M, Y); pigment-based (K)

Print languages

JPEG, URF

Connectivity, standard

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Memory, standard

512 MB

Hard disk

none

Non-printable area (cut-sheet)

0.2 x 0.2 x 0.2 x 0.2 in

Line accuracy

±0.1%

Maximum optical density (black)

8 L* min/2.10 D

Dimensions (W X D X H)

39.9 x 17.3 x 11.2 in

Finished output handling

Sheet feed, roll feed, automatic horizontal cutter

Media sizes supported

A, B, C, D

Media sizes supported

A4, A3, A2, A1

Media sizes, custom

8.3 x 11 to 24 x 74.7 in

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

Warranty

One-year limited hardware warranty

Weight

21.5 kg

What's in the box

HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord



Downloads

To download the latest product brochure, Click Here
