Description
The reliable and cost-effective way to produce a wide range of textiles and promotional goods.

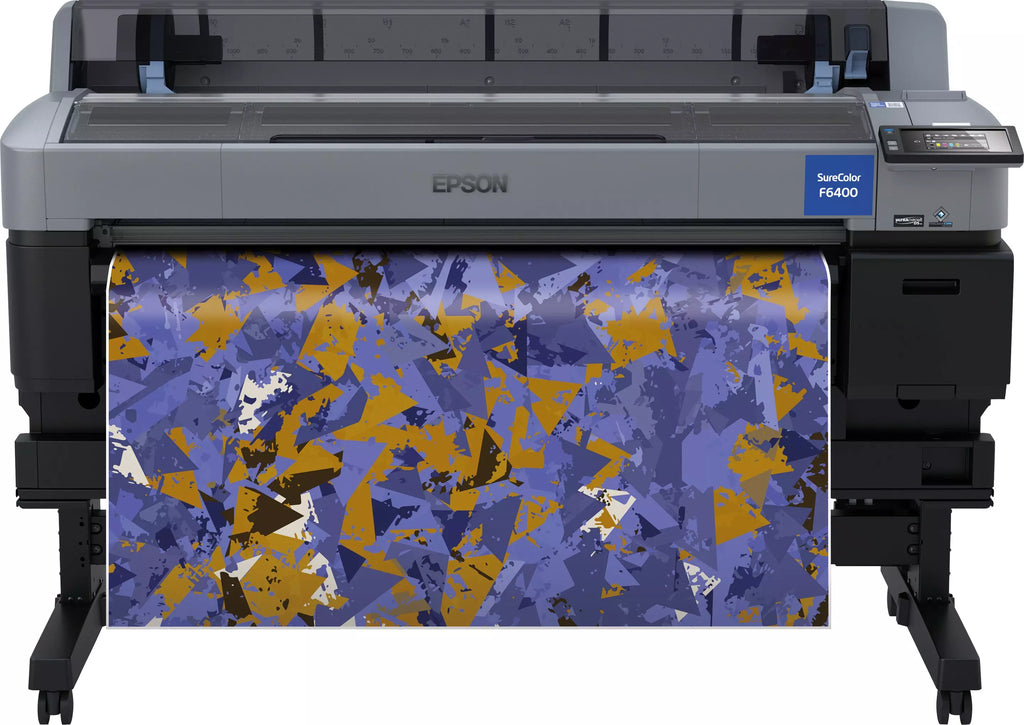

The SC F6400 is a 44 inch four colour dye-sublimation printer for textile producers, promotional goods businesses, and photographic studios. High-capacity ink pouches contain 45% more ink to reduce replacement time and waste. The PrecisionCore MicroTFP printhead can increase output by up to 20%*
Increased productivity
Increase output by up to 20%* with the PrecisionCore MicroTFP printhead. A large touchscreen and easy-access maintenance area support efficiency and help reduce downtime.
Reduced downtime
Nozzle Verification Technology automatically detects and compensates for clogged nozzles to maintain consistent productivity.
Easy to use ink packs
Ink packs are 45% larger** to reduce changeovers. Less packaging means less waste. Packs only need to be shaken and inserted, so there is no need to pour and stir.
The complete package
An integrated Epson solution ensures hardware, software, printheads, inks, and warranty work together in harmony.
Product specifications
| Printing method | PrecisionCore Micro TFP printhead |
| Ink technology | UltraChrome DS |
| Colour set | Cyan, Yellow, Magenta, High Density Black |
| Ink tank capacity | C, Y, M, HDK: 1600 ml each |
| Printing resolution | 600 × 1,200 dpi |
| Print margins roll media | Mode 1: 5 mm top, 3 mm right, 3 mm bottom, 3 mm left |
| Compatible paper thickness | 0.08 mm to 0.5 mm |
| Compatible paper weight | 40 g/m² or heavier |
| Compatible substrate thickness | Up to 1.0 mm |
| Paper format | 44″ (111.8 cm) |
| Product dimensions | 1,608 × 1,128 × 917 mm (W × D × H) |
| Maximum optical density (black) | 8 L* min / 2.10 D |
| Product weight | 85 kg |
| Memory | Printer 512 MB, Network 128 MB |
| Included software | Epson Edge Print |
| Compatible operating systems | Windows 10, Windows 8.1, Windows 8, Windows 7 (32/64 bit) |
| Interfaces | Hi-Speed USB 2.0 and Ethernet 1000 Base-T / 100 Base-TX / 10 Base-T |
| Warranty | 12 months on-site service |
| What is in the box | Ink set, maintenance kit, power cable, setup guide, user manual (CD-ROM), warranty documents |
Key features
- Complete Epson solution hardware, software, printhead, ink, and sublimation paper from one manufacturer
- Easy installation specialist tools or expertise are not required
- Optional take-up reel print longer, uninterrupted lengths by winding media onto a core
- Product durability enhanced specification increases product life and improves ROI
- Low total cost of ownership easy user access and reduced downtime
